Project Name : CONSTRUCTION OF SEWAGE AND TERTIARY
TREATMENT PLANT AT AIRPORT HEIGHTS-SEEB
CAPACITY : 600 M3/DAY.(300 x 2 Streams)
Technology : MBBR
Client : ROP
Location : Airport Heights accomodation area,Seeb
Sewage treatment plant & Tertiary treatment Plant constructed in ROP accommodation area at airport heights, Seeb to treat the domestic sewage generating from the accommodation complex.
Raw Sewage is coming by network inlet point to pumping station. After screening and raw sewage passes to the lifting station screened sewage will pumped to the STP to treating as per MRM&WR Standard ‘A’.

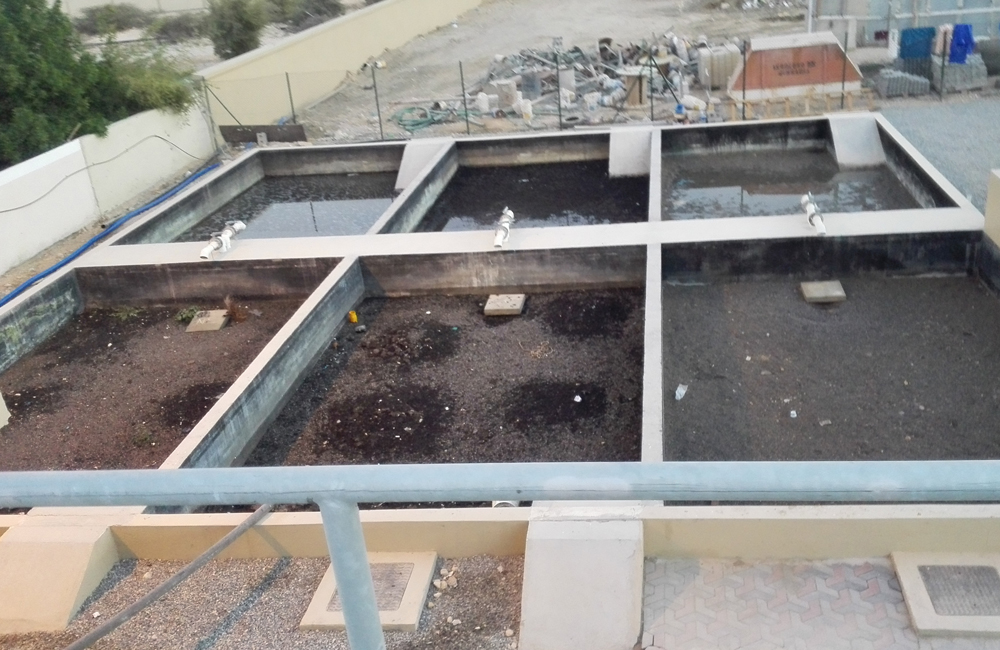

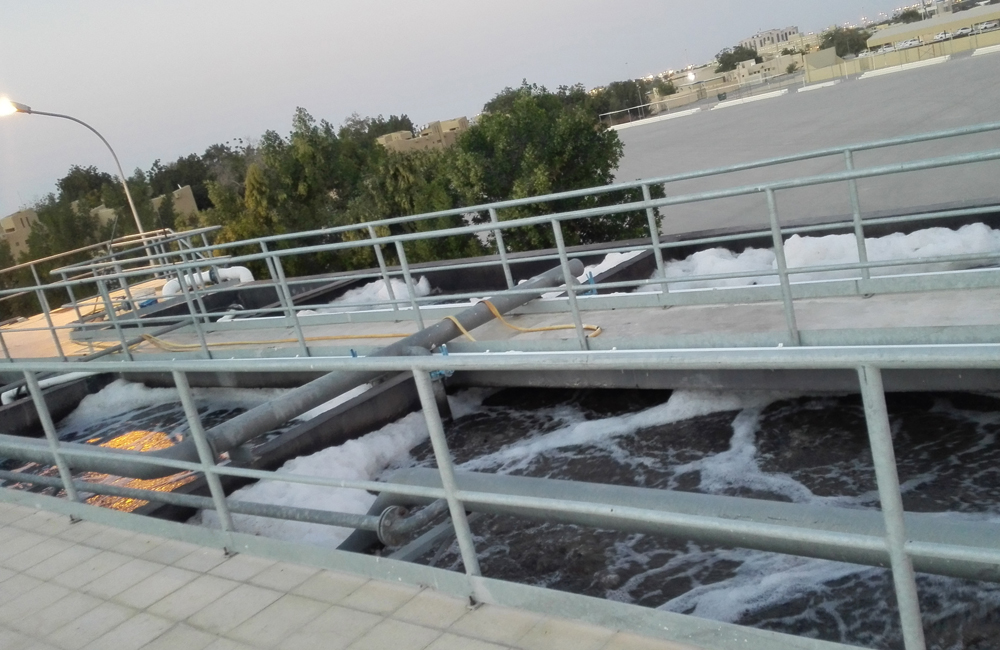

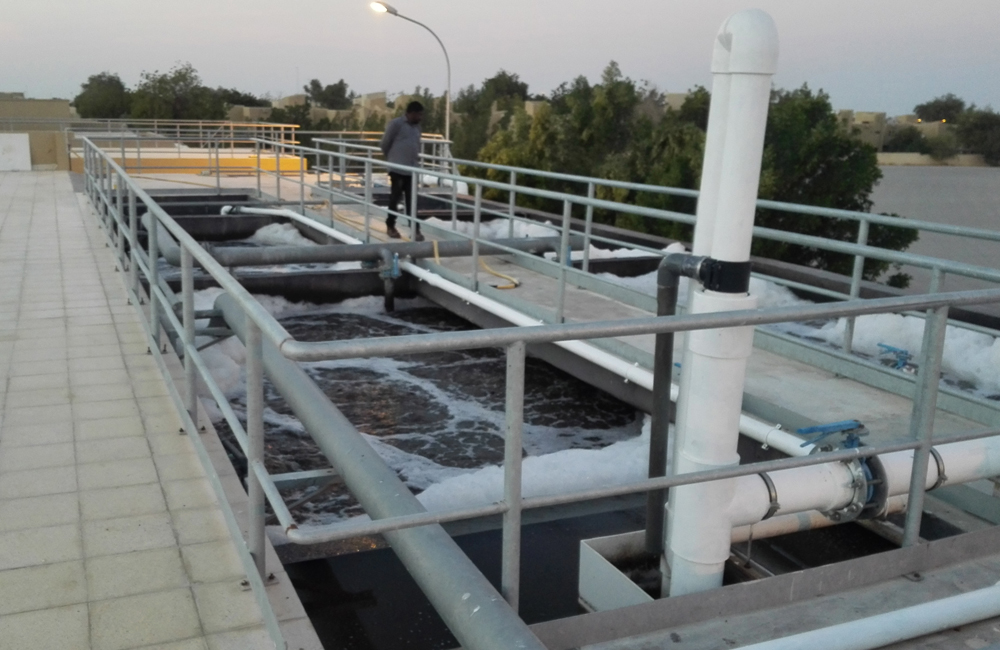

The system is based on flow control to multi-stage treatment stream of STP for balancing of high incoming flow. The process is designed on MBBR system constructive design of the MBBR function activated sludge treatment system, employing fine air bubble aeration process with MBBR Media system to reduce the surface area. In the last stage of tertiary treatment Pressure Sand Filter is used, that removes the suspended solids with accuracy and high physical cleaning technology. The final disinfecting is carried out by chlorination.
This is a double Stream Sewage Treatment Plant with [300 x2] 600m3/day Capacity.
